Portainer Community Edition is a lightweight service delivery platform for containerized applications that can be used to manage Docker, Swarm, Kubernetes and ACI environments. It is designed to be as simple to deploy as it is to use. The application allows you to manage all your orchestrator resources (containers, images, volumes, networks and more) through a ‘smart’ GUI and/or an extensive API. Portainer consists of a single container that can run on any cluster. It can be deployed as a Linux container or a Windows native container.
Depemdemcies
For everything to work out you will need to make sure that you have the following requirements:
If this is the case, we can carry on creating the compose stack.
It is recomended to clone the GitHub repo home-lab for the most up to date configuration of this service.
Setting up portainer container
Create a docker-compose.yml and copy the data below into it.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
version: '3.9'
volumes:
data: {}
services:
portainer:
image: portainer/portainer-ce:latest # Image for community edition
# image: portainer/portainer-ee:latest # Image for enterprise
container_name: portianer
restart: unless-stopped
volumes:
- /etc/localtime:/etc/localtime:ro
- /var/run/docker.sock:/var/run/docker.sock
- data:/data
ports:
- 9443:9443/tcp
- 8000:8000/tcp
# environment:
# - EDGE_INSECURE_POLL: 1 # Needed when using self signed cert with edge agent
Managing the compose stack
The following commands should be run in the same directory as the docker compose file.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# Start the compose stack
# ---
sudo docker compose up -d
# Stop the compose stack
# ---
sudo docker compose down
# Rebuild / restart the compose stack
# ---
sudo docker compose up -d --force-recreate
# View the compose stack logs
# ---
sudo docker compose logs portainer
Post-install

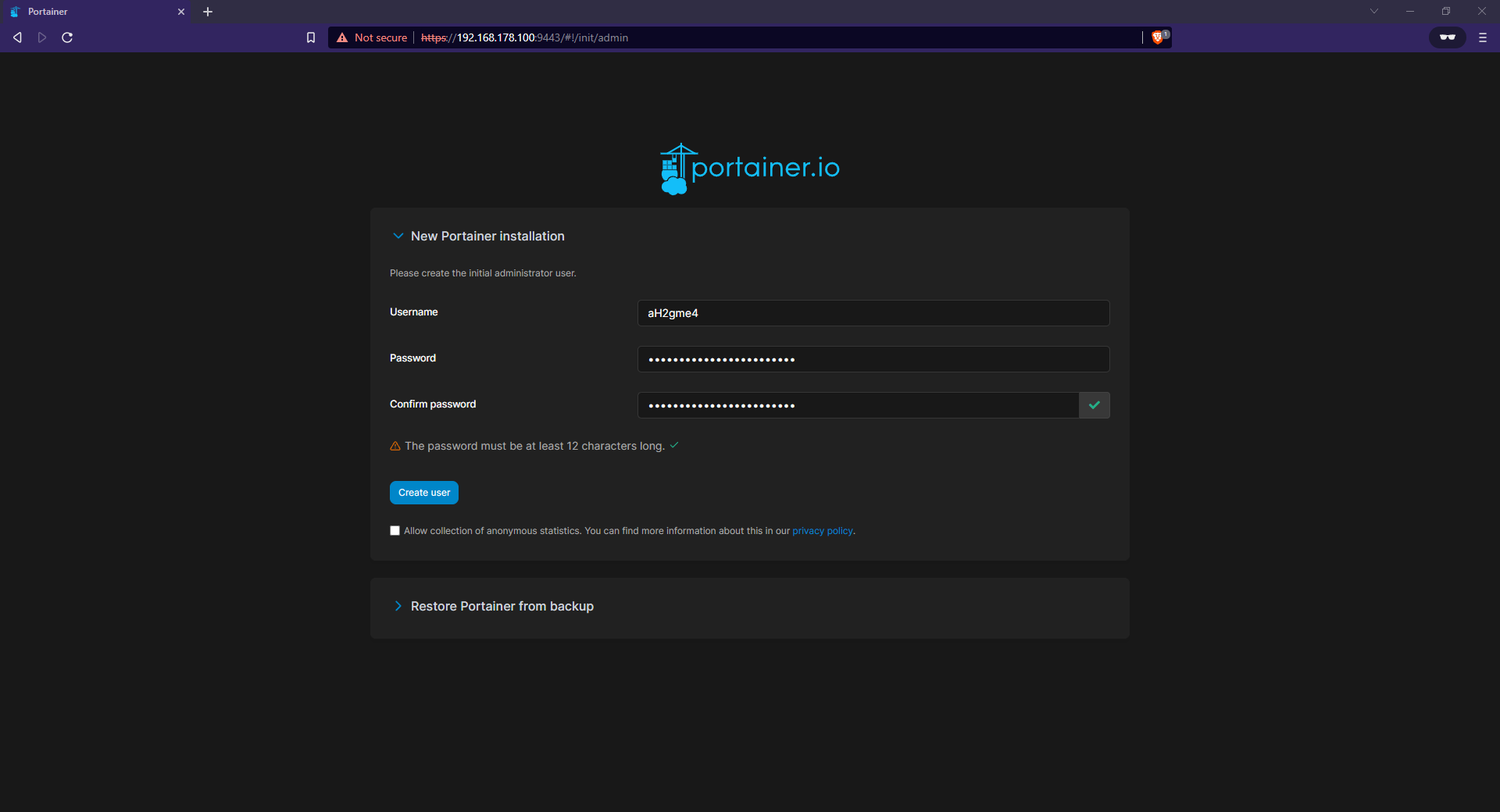

After you have started Portainer visit the url https://<host-ip-address>:9443. Here you will need to setup your admin account for your Portainer instance. Just type in a username, password and optionally opt out of the annonymouse statistics collection.
Try NOT to use a username, like root, admin or administrator, instead use a username such as aH2gme4. This will increase your resistance against brut force attacks. Also have a password with at least 12 characters. It should include upper and lowercase letters, numbers and symbols.

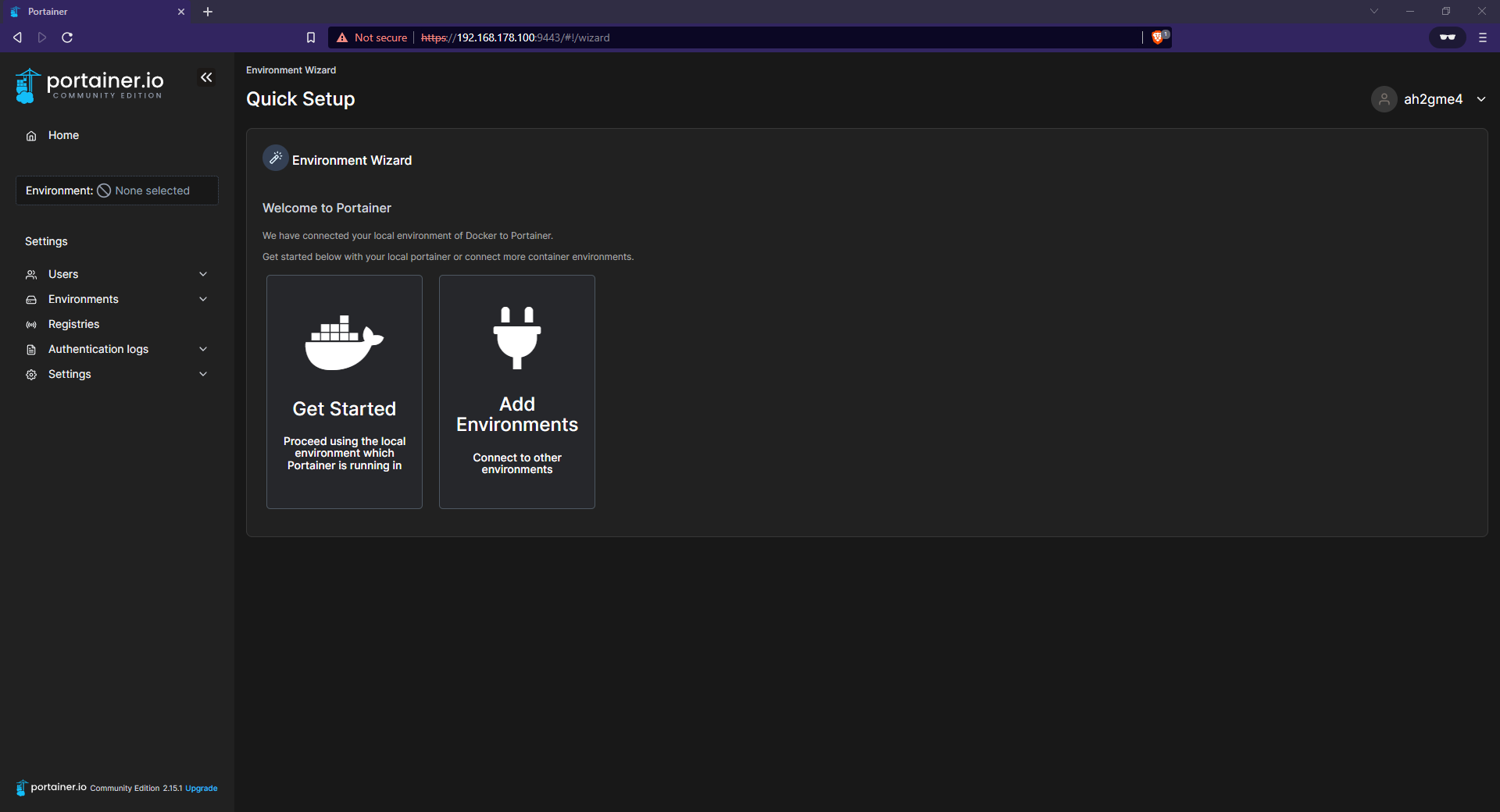

After successfully login in to your Portainer instance you can click on Get Started to start creating containers and stacks on your host. If you want to link another Host with your Portainer instance you can click on Add Environments.
Congratulations 🎉 you have successfully set up your Portainer instance.
Edge agent
Find out more about the use of the edge agent here.
